Place of Origin:
Korea
Brand Name:
DOOSAN
Certification:
CE ISO
Model Number:
DH300LC-7

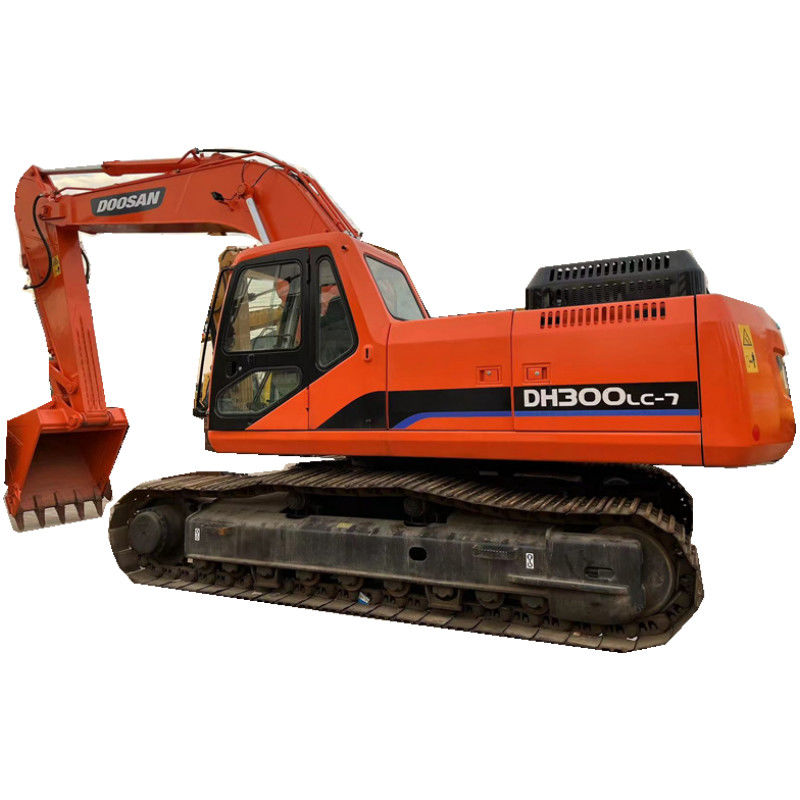

What is Doosan DH300LC-7
Doosan DH300LC-7 is a powerful and efficient excavator that is designed to deliver reliable performance in a range of applications. Its advanced hydraulic system, comfortable cab, and safety features make it a popular choice among operators and contractors in the construction industry.
The DH300LC-7 is equipped with a powerful Doosan DL08 diesel engine that delivers up to 202 kW (271 hp) of power. The engine is designed to be fuel-efficient and meet the latest emissions regulations, which helps to reduce the machine's environmental impact and operating costs.
The hydraulic system of the DH300LC-7 is optimized for maximum efficiency and performance. It includes avariable piston pump and a load-sensing system, which adjusts the flow of hydraulic fluid based on the demands of the work being carried out. This helps to ensure that the machine delivers precise and efficient operation, while also reducing fuel consumption.
The cab of the DH300LC-7 is designed to be comfortable and spacious, with a high-resolution monitor that provides real-time information about the machine's performance. The cab also features adjustable seating and controls, air conditioning and heating, and excellent visibility, which helps to reduce operator fatigue and increase productivity.
In addition to its advanced hydraulic systerm and comfortable cab, the DH300LC-7 also features a range of safety features, including a rearview camera, emergency stop button, and a reinforced cab structure. These features help to ensure that operators are safe and secure while working on the job site.
Related Product: Doosan DX200, Doosan DH210W-7, Doosan DX60W, Hyundai 210W, Doosan DX225
Engine Rated Power (kW): 147 kW
Operating weight (kg): 29500 kg
Backhoe Bucket ISO Heaped: 1.27 m³
Model | DH300LC-7 | ||
Operating weight | 29500kg | ||
Standard bucket capacity | 1.27m3 | ||
Engine | Engine Model | DE08TIS | |
Type |
Direct injection,Four strokes, Water cooling, Turbo charged, |
||
No. of cylinders | 6 | ||
Rated power/speed | 147Kw/1900rpm | ||
Displacement | 8.07L | ||
Main data | Travel speed | 5.1/3.0km/h | |
Max. gradeability | 30% | ||
Swing speed | 9.9rpm/min | ||
Ground pressure | 55kPa | ||
Bucket digging force at power max. | 188.3/200kN | ||
Arm crowd force at power max. | 127.5/135.3kN | ||
Hydraulic system | Main pump | 2Plunger pump | |
Rate flow | 2x247L/min | ||
Oil & Fuel refilling | Fuel tank capacity | 500L | |
Hydraulic tank capacity | 280L | ||
Engine lubrication | 32L | ||
Dimensions | Overall Dimension | 10620*3200*3250mm | |
Overall width of cabin | 1005mm | ||
Overall height of cabin | 845mm | ||
Overall width of undercarriage | 2960mm | ||
Standard track shoe length | 4940mm | ||
Standard track shoe width | 600mm | ||
Standard track shoe height | 1035mm | ||
Clearance under counter weight | 1150mm | ||
Ground clearance | 500mm | ||
Tail swing radius | 3200mm | ||
Max. digging height | 10745mm | ||
Max. dumping height | 7260mm | ||
Working Range | Max. digging depth | 7365mm | |
Max. vertical wall digging depth | 6180mm | ||
Max. digging reach | 10555mm | ||
Min. turning radius | 4055mm | ||
Min.digging height | 615mm |
We Also Offer | ||||
PRODUTS | BRAND | MODEL | YEARS | OPERATING HOURS |
EXCAVATOR | KOBELCO | SK130, SK140, SK200, SK210 | 2017,2018,2019,2020,2021 | 2000h-3000h |
KOMATSU | PC60, PC120, PC130-7, PC200, PC210, PC220 | 2018,2019,2020,2021,2022 | 2000-4000h | |
HYUNDAI | 220, 210 | 2018,2019,2020,2021,2022 | 1000h-2000h |
